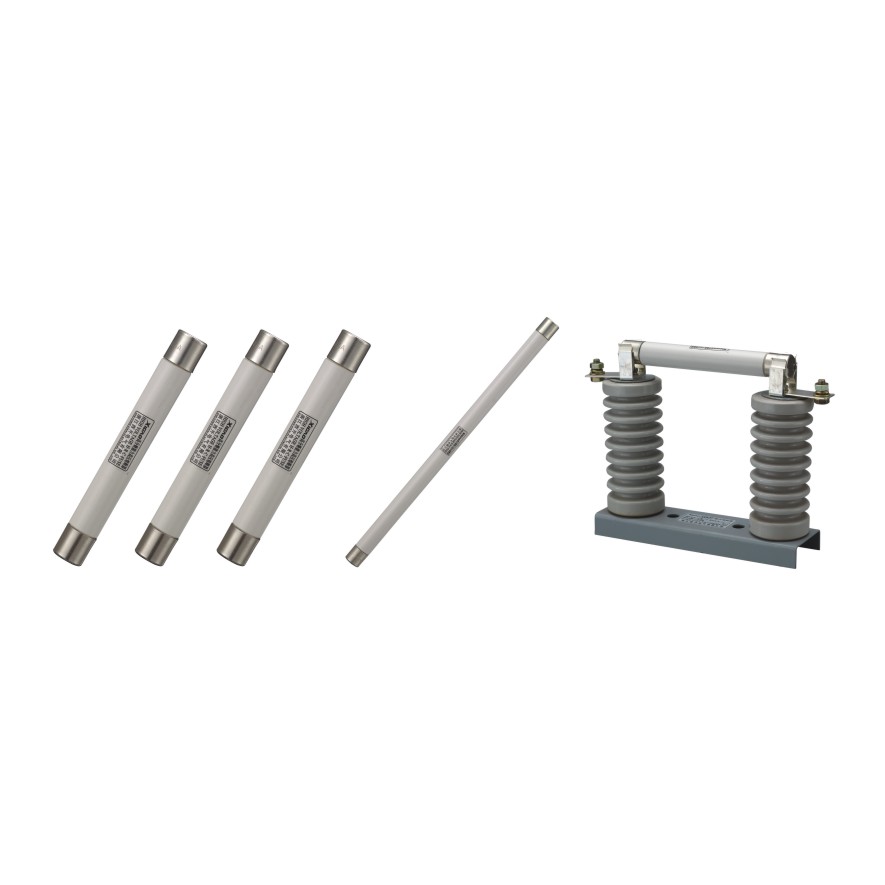

This product is used for indoor AC 50Hz, rated voltage 3.6-40.5kV system as overload and short circuit protection of voltage transformer. The product conforms to GB15166.2 and IEC282-1.
Technical Information
?Technical Specification |
|
|
|
Model | XRNP□-12/-50 | XRNP□-24/-50 | XRNP□-40.5/-50 |
Rated voltage (kV) | 12(10) | 24(20) | 40.5(35) |
Rated current(A) | 0.2,0.5,1,2,3.15 | 0.2,0.5,1.2,3.15 | 0.2,0.5,1.2,3.15 |
Turn-on Current(kA) | 50 | 50 | 50 |

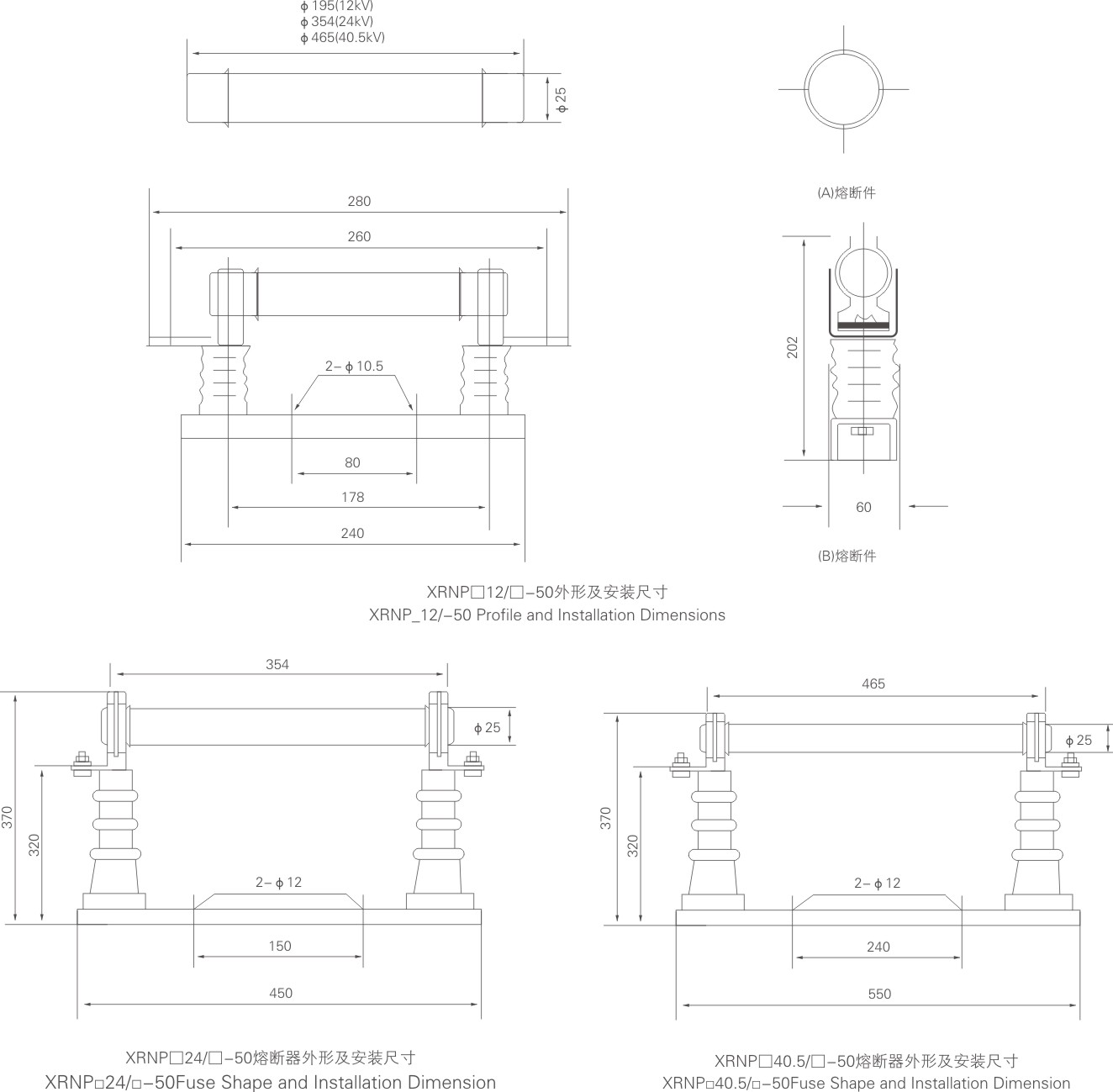

Overall and installation dimensions
