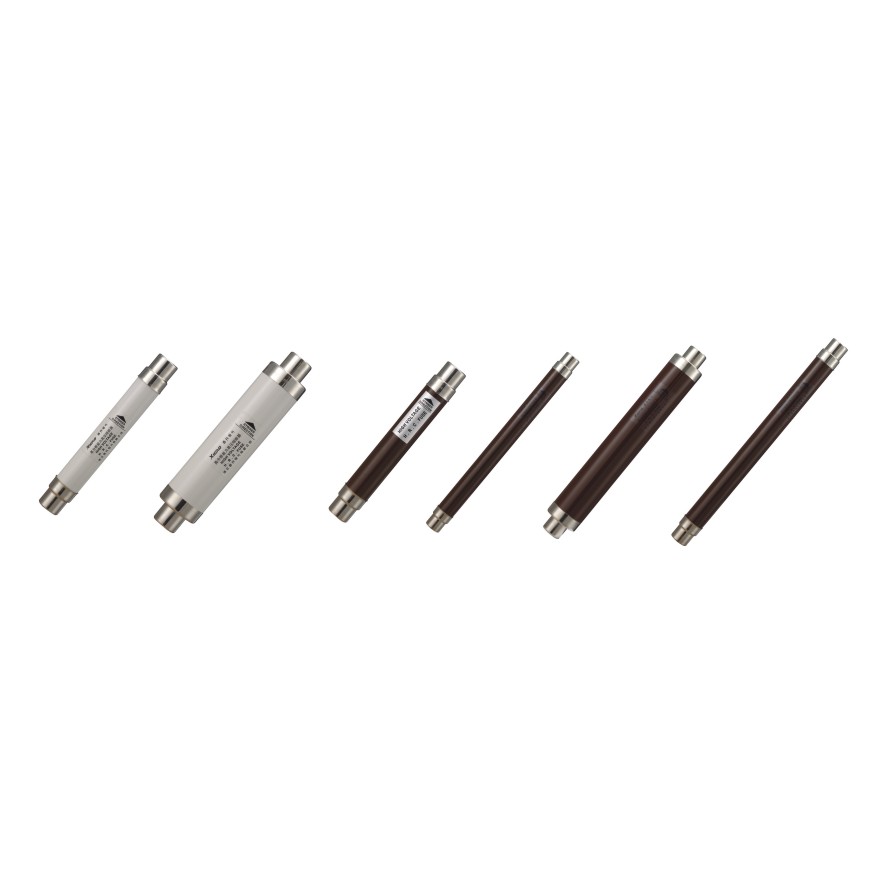

High Voltage Current Limiting Fuse for Transformer Protection

This product is suitable for indoor AC 50Hz system with rated voltage of 3.6kV, 7.2kV, 12kV, 24kV and 40.5kV. It can be used in conjunction with other switching appliances such as load switches and vacuum contactors as short circuit and overload protection components of power transformers and other equipment, as well as high voltage switching frame, ring network frame and high/low voltage pre-installed substation. Station necessary supporting products.

parameters

Technical Information

Technical Specification
Model	XRNT1-12	XRNT1-12	XRNT1-12	XRNT1-24	XRNT1-40.5
Equivalent model	SDLAJ	SFLAJ	SXLAJ
Rated voltage (kV)	12	12	12	24	40.5
Fuse rated current (A)	40	125	200	200	100
Melt Rated Current (A)	3.15、6.3、10、 16、20、25、 31.5、40	50、63、71、80、100、125	160、200	3.15、6.3、10、16、20、25、31.5、40、50、63、80、 100、125、160、200	3.15、6.3、10、 16、20、25、31.540、50、63、100、
Turn-on Current (kA)	50	50	50	50	40

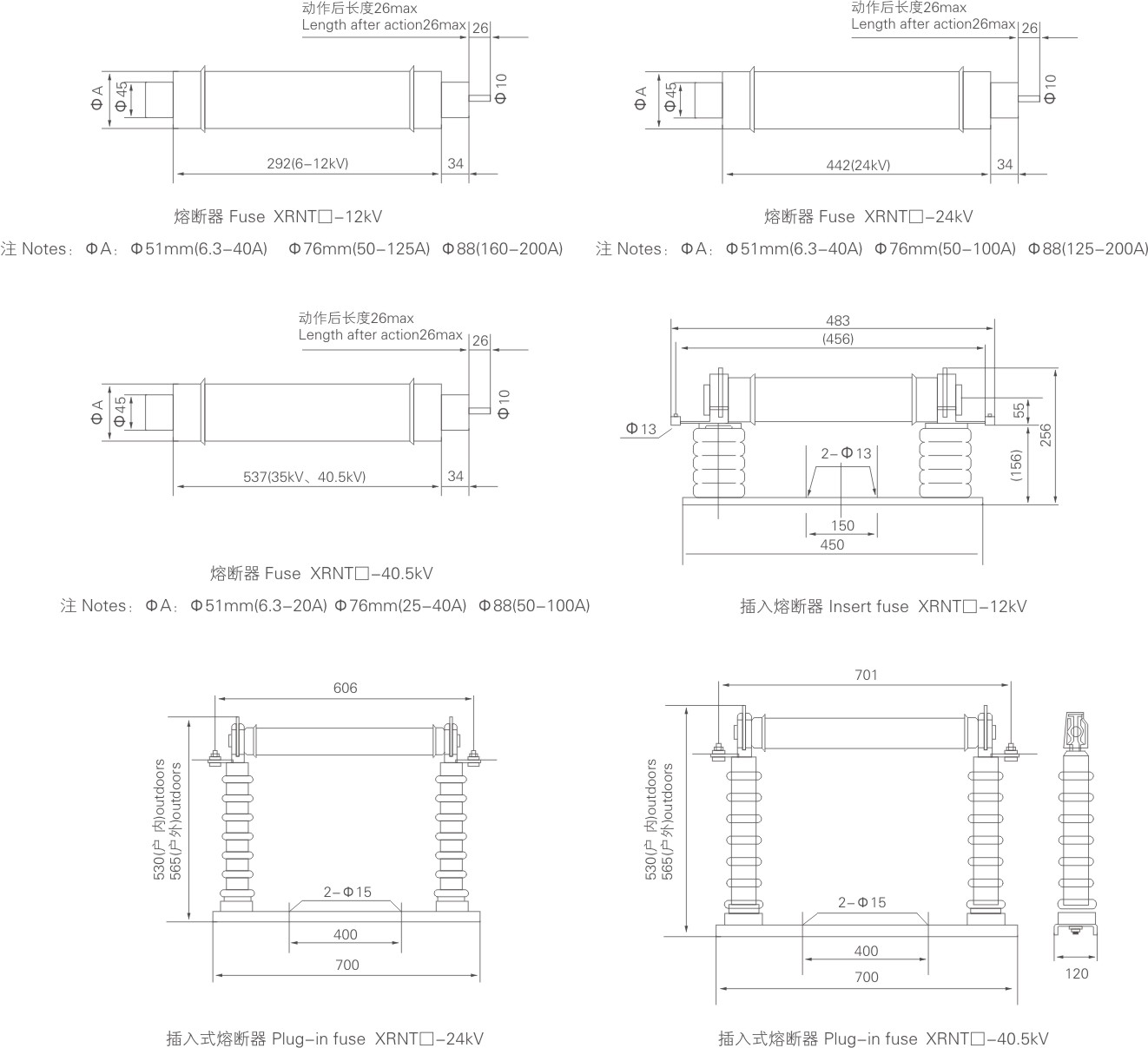

Overall and installation dimensions
