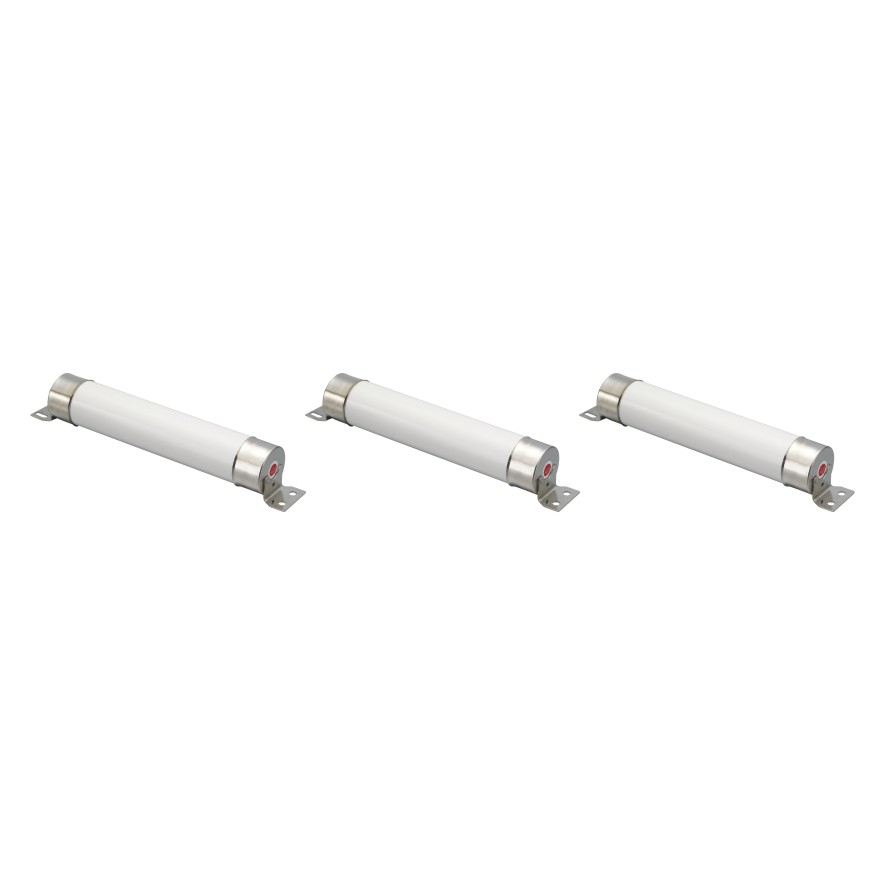

High Voltage Current Limiting Fuse for W Series Motor Protection

This product is suitable for indoor AC 50 Hz, rated voltage 3.6 kV and 7.2 kV power supply system, and can also be used in conjunction with other protective appliances (such as load switches, vacuum contactors, etc.), as overload or short-circuit protection of high-voltage motors and other power equipment.This series of products conform to GB15166.2 national standard and IEC60282-1 International Electrotechnical Commission standard.

parameters

Technical Information

Technical Specification
					Main dimensions
Serial number	Product Model	Rated voltage	Turn-on Current (kA)	Rated current	D(mm)	L(mm)	National Standard Model
093			50kA	50A			XRNM-3.6kV/50A
094			50kA	63A			XRNM-3.6kV/63A
	WDF·0				51
095			50kA	80A		254	XRNM-3.6kV/80A
096			50kA	100A			XRNM-3.6kV/100A
097			50kA	125A			XRNM-3.6kV/125A
098			50kA	125A			XRNM-3.6kV/125A
	WFF·0	3.6kV
099			50kA	160A			XRNM-3.6kV/160A
100			50kA	200A			XRNM-3.6kV/200A
101			50kA	250A	76	254	XRNM-3.6kV/250A
102	WKF·0		50kA	315A			XRNM-3.6kV/315A
103			50kA	355A			XRNM-3.6kV/355A
104			50kA	400A			XRNM-3.6kV/400A
105			50kA	25A			XRNM-3.6kV/25A
106			50kA	31.5A			XRNM-3.6kV/31.5A
107			50kA	40A			XRNM-3.6kV/40A
108			50kA	50A			XRNM-3.6kV/50A
109	WFN·0		50kA	63A			XRNM-3.6kV/63A
110			50kA	80A			XRNM-3.6kV/80A
		7.2kV			76
111			50kA	100A		403	XRNM-3.6kV/100A
112			50kA	125A			XRNM-3.6kV/125A
113			50kA	160A			XRNM-3.6kV/160A
114			50kA	200A			XRNM-3.6kV/200A
115			50kA	224A			XRNM-3.6kV/224A
	WKN·0
116			50kA	250A			XRNM-3.6kV/250A
117			50kA	315A			XRNM-3.6kV/315A

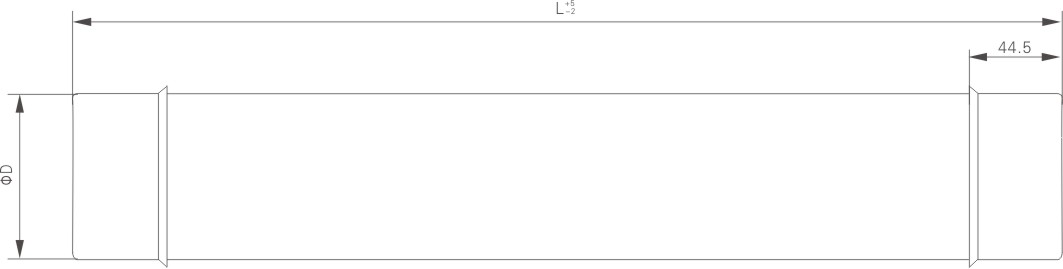

Overall and installation dimensions
